Clock-type irreversible thermometer with 5 temperature levels (pack 10 units)

Circular-type irreversible temperature label. Supplied in packets with 10 units.

More details

15,93 €

Select range in the dropdown:

10 uds

Volume discounts

QuantityDiscountYou Save
20 5% Up to 15,93 €
50 10% Up to 79,65 €
100 20% Up to 318,60 €
200 25% Up to 796,50 €

This round temperature indicator includes 5 control points arranged circularly. As it is an irreversible-type indicator, each point makes a permanent colour change when reaching the temperature marked on them. Therefore, it acts as a control method of the temperature limits reached.

Its round shape and small size facilitate temperature controls in areas with limited space or in small components, such as condensers. As it is adhesive, it is easy to apply and can be attached to quality or production reports.

This thermometer is available is various ranges with different temperatures:

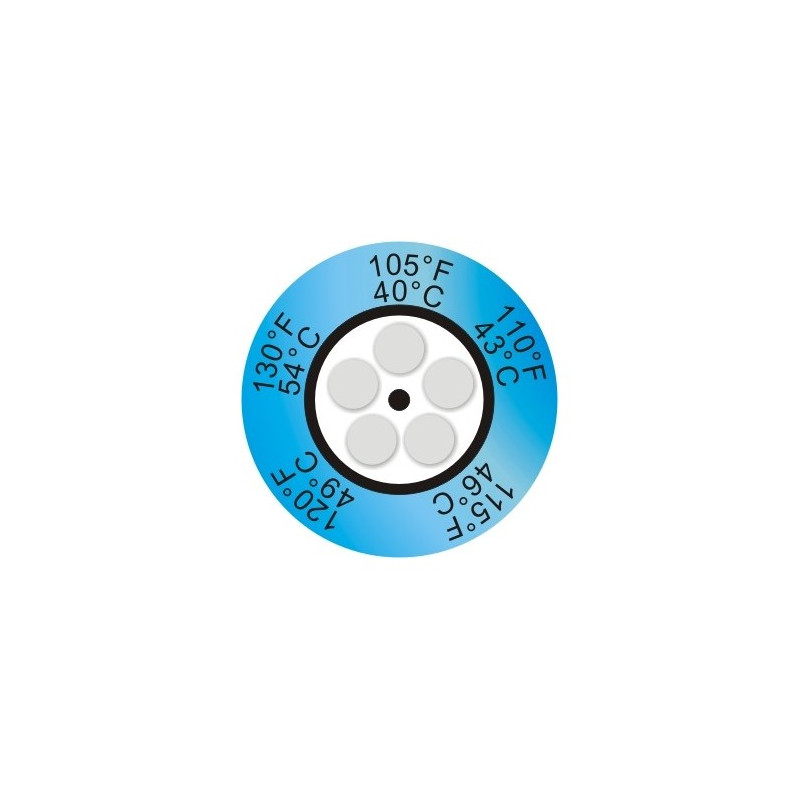

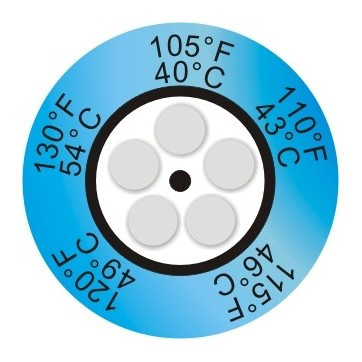

  • Range 1: 40ºC - 54ºC / (104-129ºF) (Temperature points ºC: 40 43 46 49 54ºC)

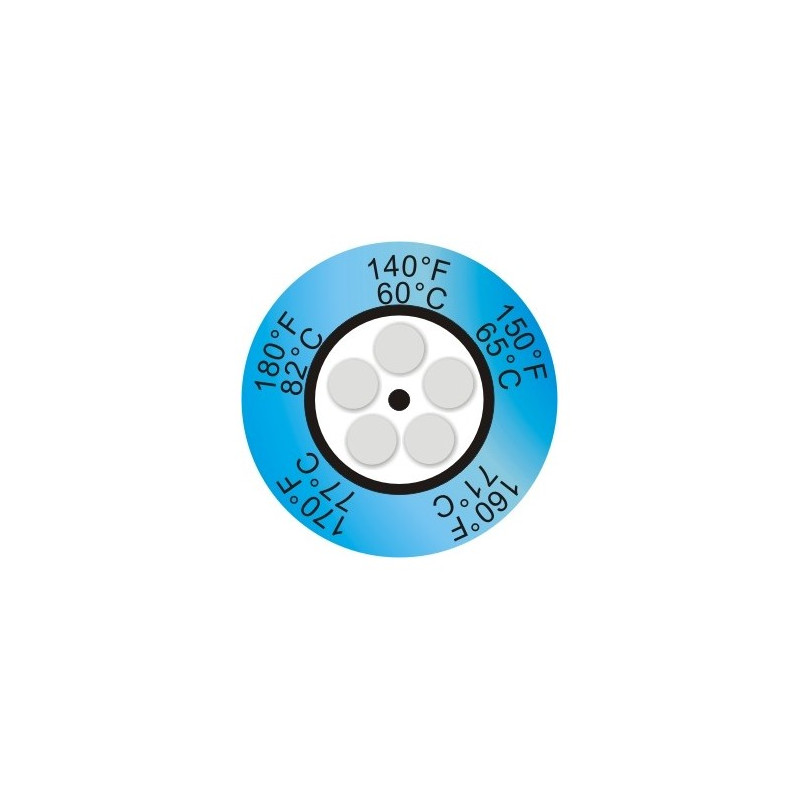

  • Range 2: 60ºC - 82ºC / (140-180ºF) (Temperature points ºC: 60 65 71 77 82ºC)

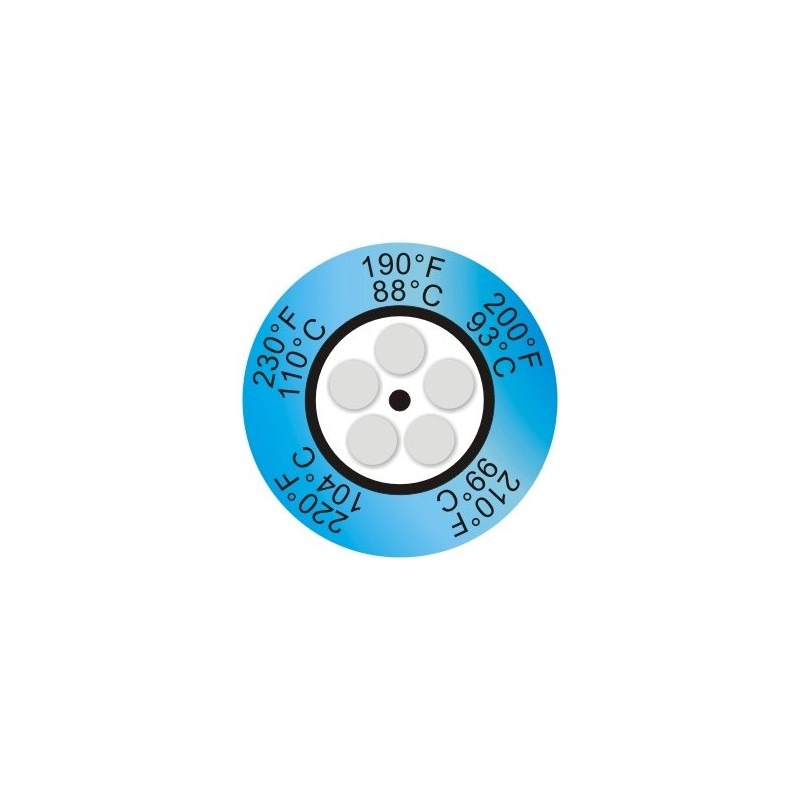

  • Range 3: 88ºC - 110ºC / (190-230ºF) (Temperature points ºC: 88 93 99 104 110ºC)
  • Range 4: 116ºC - 138ºC / (240-280ºF) (Temperature points ºC: 116 121 127 132 138ºC)

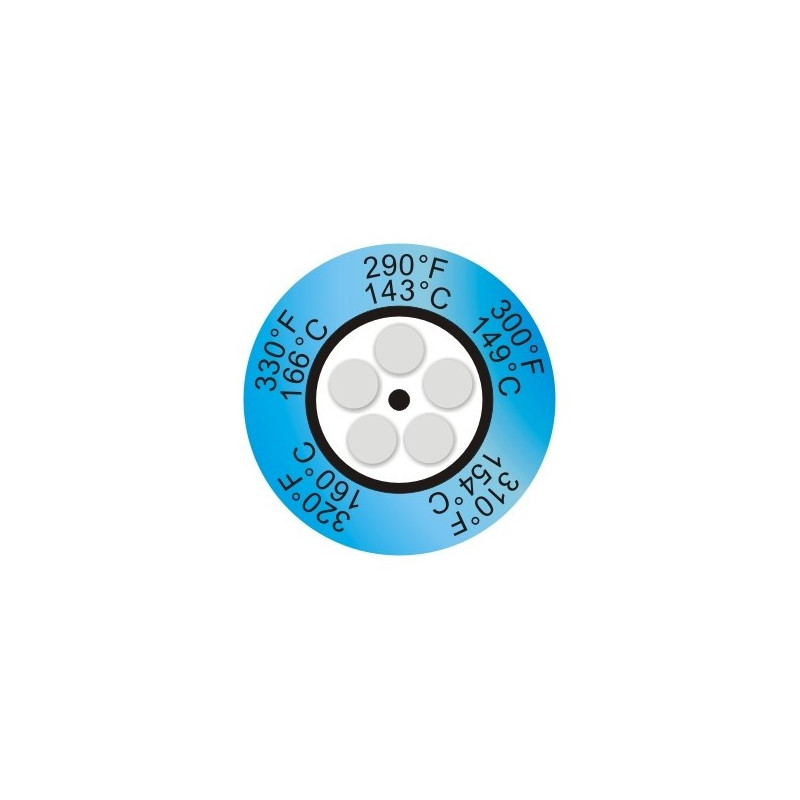

  • Range 5: 143ºC - 166ºC / (290-330ºF)(Temperature points ºC: 143 149 154 160 166ºC)

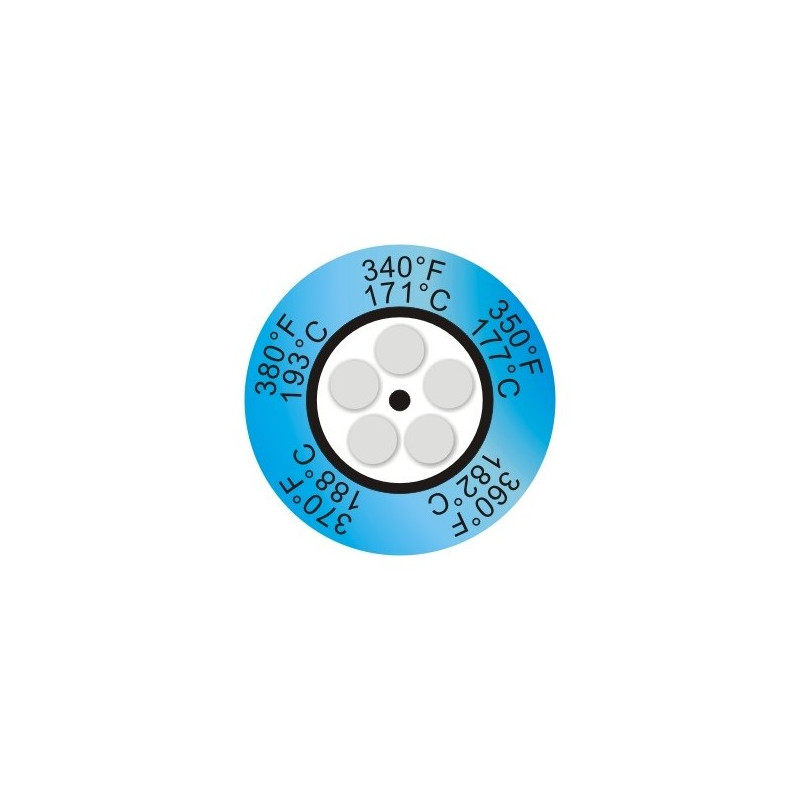

  • Range 6: 171ºC - 193ºC / (340-380ºF) (Temperature points ºC: 171 177 182 188 193ºC)

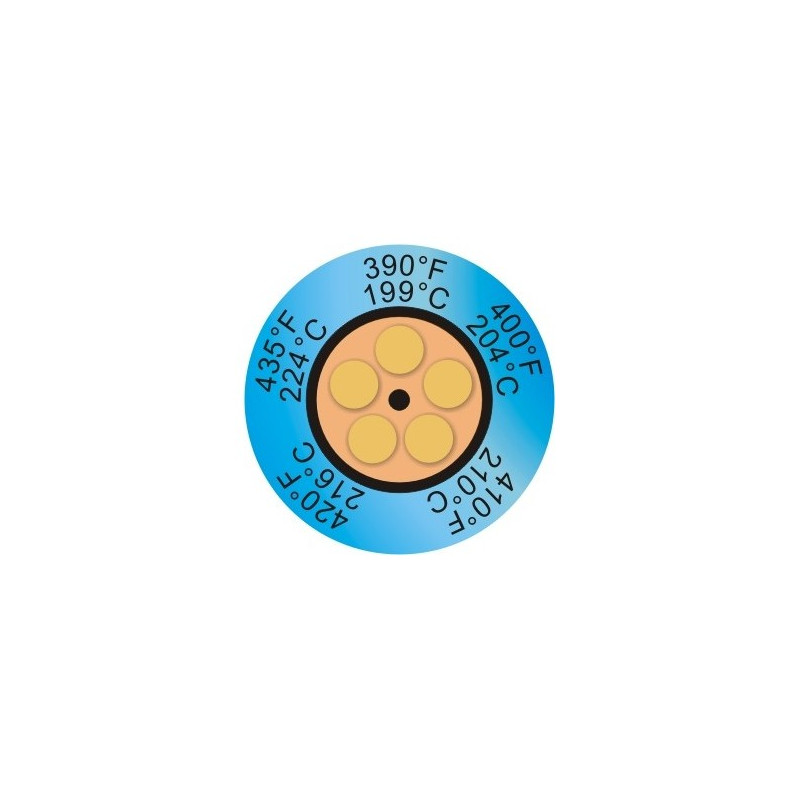

  • Range 7: 199ºC - 224ºC / (390-435ºF) (Temperature points ºC: 199 204 210 216 224ºC)

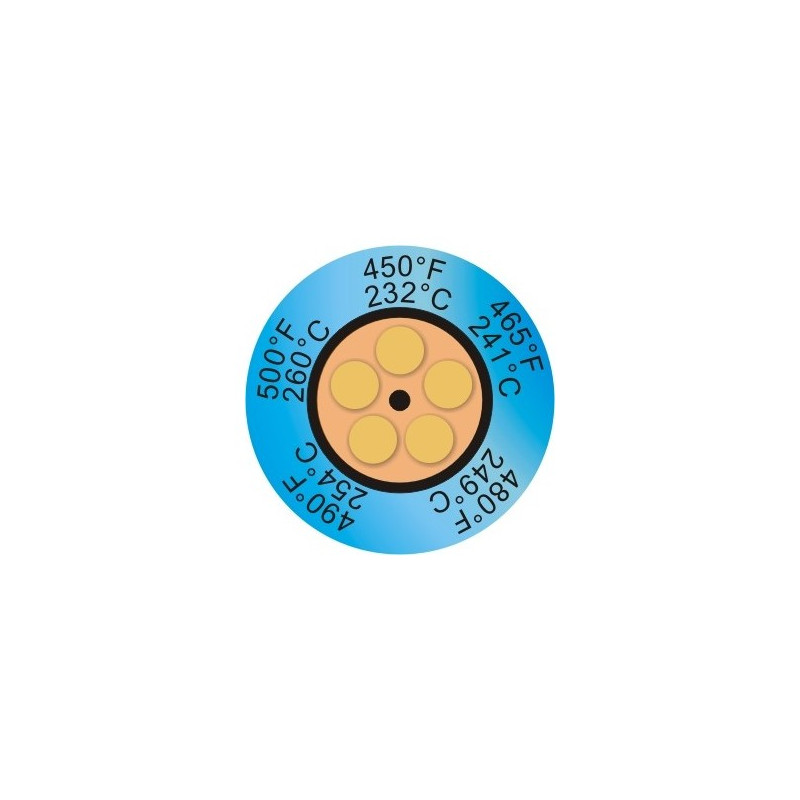

  • Range 8: 232ºC - 260ºC / (450-500ºF) (Temperature points ºC: 232 241 249 254 260ºC)

Supply: Packets with 10 units

Dimensions: 14 mm in diameter

Type: Circular

Temperature labels consisting of an adhesive base on which a temperature-sensitive material is printed, that, when reaching the degrees centigrade they have been calibrated at, changes colour to black permanently.

These labels are laminated and coated with transparent polyester. Therefore, they are resistant to water and oil. They can be stuck on any type of surface, curved surfaces included, due to their flexibility.

Accuracy of these thermometers is <+/-1ºC> to 100ºC temperature and  <+/-1%> for temperatures above 100ºC

These thermometers have been made according to ISO 9001 standard.

The chemical substances and components of this label meet REACH Annex XVII, with regard to public health and the environment.

Uses of the clock-type 5-level irreversible thermometer

The clock-type irreversible temperature indicator is the only one with a round shape. It is a general-purpose thermometer, like the other thermometers of this type, and can be used in all sectors. Due to its shape and size, it is the perfect solution for temperature controls in cylindrical products, such as condensers and or other products in which there is no place for a common label.

Sometimes, it is chosen because of its easy reading, despite its small dimension. Next, some examples of use of this temperature label are shown:

  • Industry
    • Oven temperature
    • Aluminium lacquering
    • Thermal treatment for mechanical parts
    • Manufacturing of photovoltaic modules
    • Manufacturing of cans for food
  • Food
    • Sterilisation of plastic containers
    • Glass sterilisation
    • Control of the deep-fryer temperature
    • Food sterilisation with heating processes
    • Boiling processes for jams and pâtés
  • Medical and pharmaceutical industry
    • Sterilisation of equipment
    • Temperature control in laboratory processes
